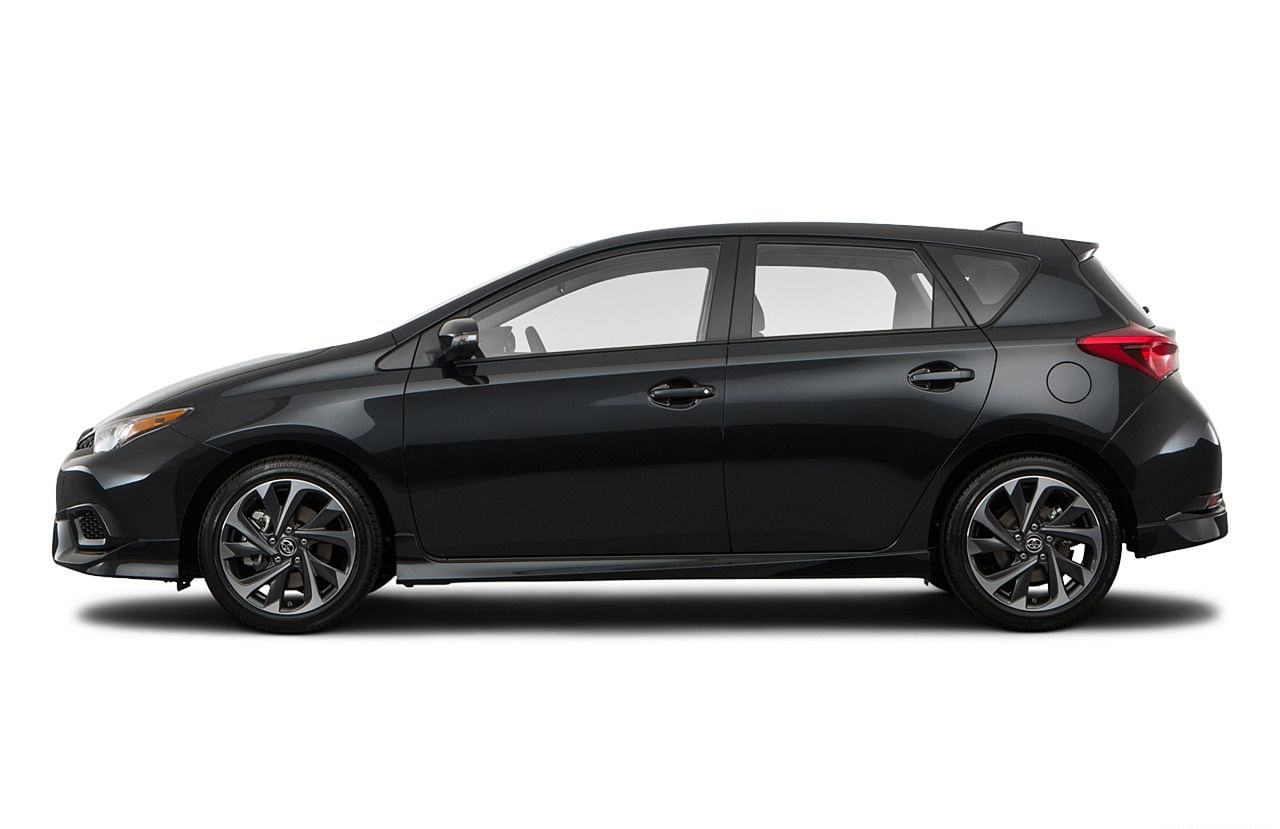

2017 Toyota Corolla IM Hatchback

#47
in Compact hatchbacks
2017 MODEL

$18,750 - $19,490

6.6

Overall Rating

FILTER BY YEAR

FILTER BY BODY STYLE

Overview

Previously known by the name Scion but now absorbed by mother Toyota, it is a hot hatch with not so hot performance. The iM is also known as Auris hatchback in European markets. Only available in one variant which was the tradition of Scion badge for all of its vehicles. The standard features available are impressive. You can choose between a manual and CVT a gearshift.It offers an independent rear suspension and driving pleasure's on winding roads. Interior is cladded in soft cloth wherever you will touch,and leather wrapped steering has resilient grip associated with it's aggressive handling.Corolla iM competes with John Cooper Mini, Honda Civic hatchback and Fiat 500l pop being the cheapest among all. All of these are small cars with spruced up engines and low manufacturing cost. So how does Toyota make a difference?

See detailed review »

Pros

Snappy Exterior

Well bolstered seats

Quiet ride

Sharp Handling

Cons

Lethargic Acceleration

Annoying CVT

Odd Lane departure system

What's New?

Forward collision warning

Lane departure warning added with forward collision mitigation

Standard automatic high beam control also comes with the package.


Features

vehicle bio

base price

$18750

bodystyle

4dr Hatchback

passenger capacity

5

top speed

111 mph

drivetrain

FWD

engine type

displacement

110 cu. in.

horsepower

137 hp @ 6100 rpm

torque

126 lb.-ft. @ 4000 rpm

transmission

6-speed manual

chassis

suspension front

independent front strut suspension

suspension rear

independent rear double wishbone suspension

brake rotors (f/r)

11 in. ventilated front disc/11.7 in. solid disc brakes

dimensions

wheelbase

102.4 in.

length

170.5 in.

width

69.3 in.

height

58.1 in.

curb weight

2998 lbs.

ground clearance

5.5 in.

capacity

passenger volume

90.4 cu ft.

cargo volume

20.8 cu ft.

towing capacity

1500 lbs.

performance

zero to 60 mph

9.5 sec.

zero to 100 mph

27.9 sec.

rolling start (5-60 mph)

9.4 sec.

standing ¼-mile

17.2 sec.

braking (70-0 mph)

175 ft.

fuel economy

city/combined/highway

27/30/35 mpg

highway range

490 mi.

warranty

basic warranty

3 years/36000 miles

drivetrain warranty

5 years/60000 miles

corrosion warranty

5 years/unlimited

roadside assistance

No



Styles

 2017 Toyota Corolla iM Hatchback in Spring Green Metallic color  2017 Toyota Corolla iM Hatchback in Electric Storm Blue color  2017 Toyota Corolla iM Hatchback in Classic Silver Metallic color  2017 Toyota Corolla iM Hatchback in blizzard pearl color  2017 Toyota Corolla iM Hatchback in Black Sand Pearl color  2017 Toyota Corolla iM Hatchback in Barcelona Red Metallic color
Spring Green Metallic

Vehicle images are guides only and may not reflect the model's exact specifications/features– exact specifications/features should be confirmed with the seller.

Ratings

Safety

6.6

Exterior

8.5

Engine

5.6

Interior

5.0

Fuel Economy

6.8

Features

7.0

6.6

OVERALL RATING

Variant Name

MSRP


 2017 Toyota Corolla iM Hatchback 4dr Hatchback

4dr Hatchback

Fuel: Regular unleaded, Transmission: Manual, Seats: 5

$18,750 - $19,490

Configurations
4dr Hatchback (1.8L 4cyl 6M)
Engine: I-4 Transmission: 6M
Drivetrain: FWD MPG: (27/30/35)
HP: 137 -hp @ 6100-rpm Torque: 126 lbs.-ft. @ 4,000 rpm
4dr Hatchback (1.8L 4cyl CVT)
Engine: I-4 Transmission: CVT
Drivetrain: FWD MPG: (28/31/36)
HP: 137 -hp @ 6100-rpm Torque: 126 ft-lbs. @ 4000 rpm

Expert Review


carhp editor November 15, 2018

6.6

Overall Rating


7.0/10
Features



5.6/10
Engine



6.8/10
Fuel Economy



5.0/10
Interior



8.5/10
Exterior



6.6/10
Safety





It offers an independent rear suspension and driving pleasure’s on winding roads. Interior is cladded in soft cloth wherever you will touch,and leather wrapped steering has resilient grip associated with it’s aggressive handling.

Corolla iM competes with John Cooper Mini, Honda Civic hatchback and Fiat 500l pop being the cheapest among all. All of these are small cars with spruced up engines and low manufacturing cost. So how does Toyota make a difference?

Features

7.0/10

Comes in only variant which was the hallmark for Scion branding. Four-cylinder engine producing 137 horsepower and mated to manual or 6 speed automatic. Engine doesn't put a smile on your face but well suited for daily driving.

Trim iM
MSRP (manual) $18,750
MSRP(CVT) $19,490
Key



Features



  • Projector-beam halogen headlights with auto on/off feature
  • LED Daytime Running Lights (DRL)
  • LED taillights
  • Dual zone automatic climate control with dust and pollen filter and push-button controls
  • Toyota iM Display Audio \u2014 7-in. touch-screen display, AM/FM player, Aha Radio app with over 100,000 stations, six speakers, auxiliary audio jack, USB 2.0 port with iPod connectivity and control, advanced voice recognition, hands-free phone capability, phone book access and music streaming via Bluetooth wireless technology, HD Radio Technology, and Gracenote album cover art
  • Digital clock



We Recommend

There is only one trim available but better go with manual shift than opting for continuous variable transmission (CVT). As manual shifts are easy to reach higher power band as compared to time taken by CVT.

Engine

5.6/10
"Save the manuals! We love that the standard transmission on the Corolla iM is a six-speed shift-it-yourself unit. Now save your excitement, because the iM’s underpowered four-cylinder engine will drain whatever’s left" -Car and driver

Little Corolla is Powered by the same 1.8-liter four-cylinder engine which produces 137 hp @ 6100 rpm which is 5 hp higher than its sedan sibling. The torque figures came down to 126 lb-ft @4000 rpm. Sports mode helps in quick throttle response but no paddle shifters ruins the fun.

Models Toyota Corolla iM Mini Hardtop 4 Door Cooper Honda Civic Hatchback (LX) Fiat 500L pop
MSRP $18,850 $21,950 $19,700 $20,995
Engine 1.8L DOHC 16-Valve 4-Cylinder Twin Power Turbo, 1.5-liter, inline 3-cylinder direct-injection 1.5L I-4 DOHC 16-Valve Turbocharged Intercooled Turbo Premium Unleaded I-4 1.4 L/8
Transmission 6-Speed Manual 6-speed manual 6-speed manual 6-speed automatic
Horsepower 137 hp @ 6100 rpm 134 hp @ 4400 rpm 174 hp @ 5500 rpm 160 hp @ 5500 rpm
Torque 126 lb-ft @ 4000 rpm 162 lb-ft @ 1250 rpm 167 lb-ft @ 1800 rpm 184 lb-ft @ 2500 rpm

Honda Civic and Fiat 500 are way above in term of power delivery and scores a quicker lap time. All of the vehicles comes with 6 speed manual. Mini stays a feet behind the Corolla as the power output is almost same.

Acceleration

Corolla iM does 0 to 60 in 9 .1 seconds and reaches to the quarter mile mark in 16.4 seconds which is very slow as compared to its rivals. So drag races between redlights is not that fun. Acceleration is too boring for a hot hatch.

Models Toyota Corolla iM Mini Hardtop 4 Door Cooper Honda Civic Hatchback (LX) Fiat 500L pop
0-60 MPH 9.1 sec 7.7 sec 7.0 sec 8.0 sec
Quarter mile 16.4 sec NA 15.2 sec 16.2 sec
Engine 1.8L 1.5L 1.5L 1.4L
Emission



(Tons/yr of CO2 Emissions @ 15K mi/year)

5.9 5.5 5.4 7.1

Mini and Honda are 2 seconds quicker from it while Fiat takes 8 seconds to reach from standstill to 60 miles an hour. Don't expect to pass car by car due to the sluggish engine of iM hatchback .

Ride and Handling

It drives sharper than the regular corolla but the underpinnings are same. The 1.8 liter inline four doesn't provide much grunt if compared to its snazzy exterior and the performance is same as it's cousin sedan. You have to redline the limiter to get the most out the engine. Even though by looks it feels fast but it is not. Due to the independent rear suspension ride is smooth and comfortable on bumpy patches. McPherson strut in the front multilink in the rear will keep the car planted on curves and increases drivability. Sports mode doesn't do much to the engine and CVT is better than the manual.

"You could say it’s like a prize fighter who has everything but a punch. That’s a pretty serious deficiency for a boxer"-Car and driver

Braking

Equipped with 11.7 inches in front and 11.0 inches ventilated disc in the rear. Braking distance is average taking 126 feet's to come at standstill.

Models Toyota Corolla iM Mini Hardtop 4 Door Cooper Honda Civic Hatchback (LX) Fiat 500L pop
Brake Front (in.) 11.7 11.0 11.1 12.0
Brake Rear (in.) 11.0 10.2 10.2 10.4
Curb Weight (lbs.) 2943 2,750 2,815 3,254
60-0 MPH (ft.) 126 116 117 119

All the rivals have got much better performance in emergency stopping. That may be due to high curb weight while Fiat is the heaviest among all.

Fuel Economy

6.8/10

Corolla iM returns 27 mpg in city driving condition and 35 mpg on the highway and the combined mileage is 30.

Models Toyota Corolla iM Mini Hardtop 4 Door Cooper Honda Civic Hatchback (LX) Fiat 500L pop
MPG (city) 27 28 30 22
MPG (highway) 35 37 39 30
MPG (combined) 30 32 33 25

Mini cooper and civics' engine give few more miles per gallon. Fiat may rise your monthly fuel expenses, delivering 25 MPG combined.

Interior

5.0/10
"Boasting an edgy-yet-tasteful layout, the Corolla iM's cockpit emphasizes functionality." - Kelley Blue Book

Corolla's interior is themed monochrome and fit and finish is acceptable considering the price. Door handles and some other bits are covered in piano black finish. A soft touch material covers everything you touch which feels upmarket. Appearance is the same as the sedan sibling.

A white line runs across the dashboard shaped like a big S pays homage to the Scion heritage. You get many clever spaces to store articles and total of 8 cup holders. High bolstered seats with contrast stitching grabs your body. A 7.0-inch touchscreen infotainment system loaded with intuitive software.

Model Toyota Corolla iM Mini Hardtop 4 Door Cooper Honda Civic Hatchback (LX) Fiat 500L Pop
Passenger capacity 5 5 5 5
Front (Head/Shoulder/Leg) (In.) 39.7/54.3/41.6 39.9/51.2/41.4 39.3/57.0/42.3 40.7/57.3/40
Second



(Head/Shoulder/Leg) (In.)

37.5/54.1/32.7 37.5/49.6/32.3 37.4/55.0/36.0 38.7/54.6/36.7

All the competitors have same dimensions and can seat 5 passengers and comfortably. Legroom and headroom is enough for an average sized adults in every car.

Cargo Capacity

It can carry much payload than sedan which is interesting and doesn't compromise's on space being a hatchback.

Model Toyota Corolla iM Mini Hardtop 4 Door Cooper Honda Civic Hatchback (LX) Fiat 500L pop
Cargo Volume to rear seat up (ft.3) 20.8 13.1 25.7 22.4
Cargo Volume to rear seat folded (ft.3) N/A 40.7 46.2 68.0

Although Civic and Fiat has got much cargo space and Mini has got the lowest. Rear seats can be folded down in every car to carry more luggage.

Interior Features

  • Bluetooth Audi0
  • Navigation
  • Voice Input
  • Well-padded plastic bits
  • Dual zone climate control
  • Heated Seats

Exterior

8.5/10
"It looks something from the sets of “Fast and the Furious” but don’t be mistaken. People will love this car for its looks but performance is a letdown. 17 inch dual tone alloy wheels gives it a stunning appearance and the height" -Edmunds

Dimension and Weight

The dimensions of the car are same stretches from 170.5 in length and 69.3 in width. An average sized adult will not face any difficulty in fitting inside the car but the legroom is compromised as compared to the rivals in this segment. A sweet line starts from the front till the end just above the door handles.

Model Toyota Corolla iM Mini Hardtop 4 Door Cooper Honda Civic Hatchback (LX) Fiat 500L pop
Curb weight (lbs.) 2943 2,750 2,815 3,254
Length(in)\t 170.5 157.4 177.9 167.3
Width(in) 69.3 68.0 70.8 69.8
Height(in) 55.3 56.1 56.5 65.7
Ground clearance (in) 5.5 5.7 5.1 4.7
Wheelbase (in) 102.4 101.1 106.3 102.8
Track width (in) F/R 59.6/59.3 59.1/59.1 60.9/61.5 59.1/59.4

Mini and Civic have almost got the same dimensions as Corolla but Fiat appears much like a wagon. 500l pop is the longest which makes up for more legroom.

Comes with some exciting list of features which are as follows :

  • LED daytime running lights
  • Power folding and heated mirrors
  • Aero body kit
  • Projector Headlamps

Safety

6.6/10

Safety Features

  • Eight airbags- includes driver and front passenger Advanced Airbag System, driver and front passenger seat-mounted side airbags, driver knee airbag, passenger seat-cushion airbag, and front and rear side curtain airbags
  • Driver and front passenger Whiplash-Injury-Lessening (WIL) seats
  • 3-point seatbelts for all seating positions; driver-side Emergency Locking Retractor (ELR) and Automatic/Emergency Locking Retractor (ALR/ELR) on all passenger belts



Competition

Mini Hard top Four Door Cooper vs Toyota Corolla iM

Mini has grown into a MPV sort of a car from its tiny dimensions. The design language take cues from the vintage cooper. Customization list are never ending and you can change anything from seats to wheels. 134 hp engine is peppy and joy to drive. It comes with good level of safety features and 4 star safety rating. The power figures are almost same as compared to corolla with a little more torque. Maintenance cost is much with the Mini than Corolla.

Honda Civic Hatchback (LX) vs Toyota Corolla iM

After discontinuation many years ago Civic is back with a bang. Currently manufactured in England and shipped to the American shores. It offers a lively engine with a slick gearbox. Boy racer styling is a subjective matter and differs from person to person. High-quality cabin and top-notch safety features are some of the pros of this Japanese sword. Civic is priced higher than the Corolla. Power output is also way ahead than the iM which can be the decisive factor for many people. Corolla also retains a higher resale value than Civic.

Fiat 500l POP vs Toyota Corolla iM

It is different from other compact cars. Many customization options are available. Tall wagon practicality favor's this Italian sculpture. Mini's charm will appeal to many people. Handling is not that inspiring. Rear seats can be adjusted to make more legroom. Great exterior view from the cabin increases drivability. Handling is on the downside. The power output is much more than the Civic which is a plus point for few more bucks. Annual maintenance cost high if compared to the opposition .

Final Verdict

Corolla stopped the Scion brand from dying and rejuvenated the iM hatchback with the Japanese logo on back and front. It a compact hatch and best bang for your bucks. People will notice you driving this car. Interior is sassy with sporty exterior, however, the engine is not potent enough to come in hot hatch territory.

Orphan hatchback is a decent compact offering, but no standout in the segment
